Applied Materials is committed to accelerating this new PPACt playbook for our customers and partners. We have the broadest and deepest portfolio of products for delivering PPACt innovations to the market. This portfolio encompasses the ability to create and deposit, shape and remove, modify, analyze, and connect materials and devices in new ways. We are unique in having a broad suite of process technology and metrology capabilities under one roof, and we have highly differentiated silicon and packaging lab capabilities. Our Integrated Materials Solutions co-optimize materials deposition, removal, modification, and analysis to create new materials and engineer new structures for high-performance, low-power chips at leading-edge nodes.

APPLIED MATERIALS (AMAT)

Centura Ultima HDP 200mm and 300mm systems deliver a high-density plasma CVD process. It has been the industry-leading workhorse delivering high-quality dielectric films and void-free gapfill. Its reactor enables customers to achieve the productivity, cost-efficiency, and extendibility needed for multi-generation manufacturing.
The Ultima HDP system features dual RF coils for superior gap-fill capability across the wafer; its innovative electrostatic chuck enables excellent film quality and uniformity; combined with remote plasma clean, it delivers exceptional defect and mean-wafer-between-clean performance.
The product’s advanced technology enables deposition of both undoped and doped films for a wide range of applications, including STI, PMD, ILD, IMD, and passivation. Its versatility further extends to etchback and high-density plasma treatment for improved film quality.

APPLIED MATERIALS (AMAT)

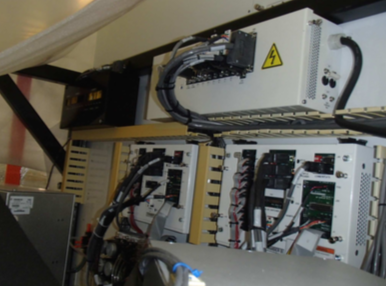

CENTURA ULTIMA TE

CVD
