KLA inhabits two worlds: one that’s nanometers in scale and one that’s global. This micro and macro view gives us a unique perspective. We see electrons wave and industries transform. When you put deep science together with optimism, big things happen.

Our process-control and process-enabling solutions are designed to boost the innovation speed of the electronics industry. We help our customers achieve leading-edge performance.

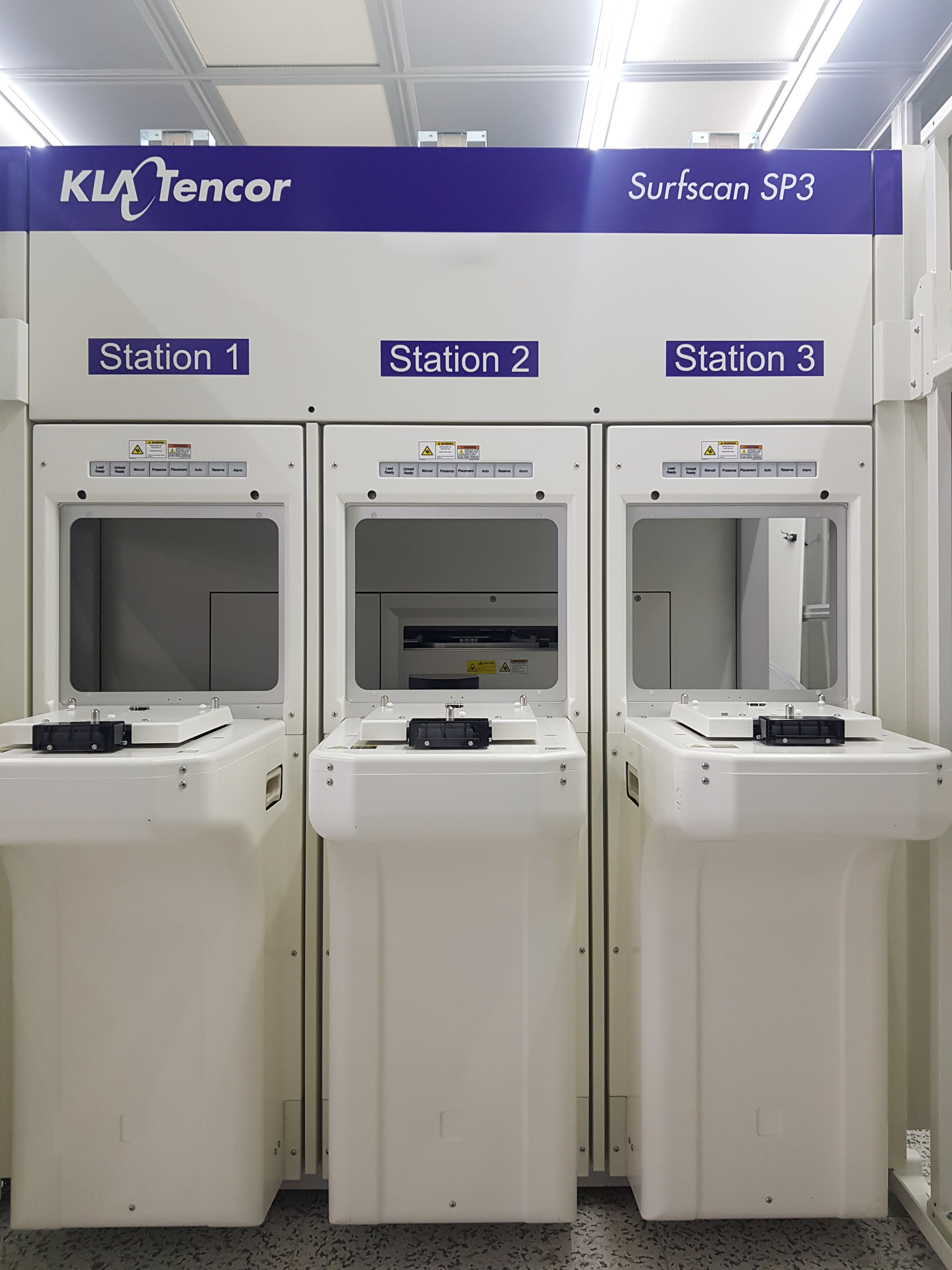

The Surfscan® SP3 is an unpatterned wafer inspection tool available in 450mm, 300mm, and 300mm/450mm bridge tool configurations. It uses deep ultra-violet (DUV) sensitivity and has a throughput up to three times that of its predecessor. It can detect critical defects and surface quality issues for IC, OEM, and substrate manufacturing at the 2Xnm design node. The tool also includes an integrated SURFmonitor module that characterizes and measures surface quality. It has flexible configurations and a reliable, extendible architecture. It is used for qualification and monitoring of process tools for the 2Xnm design node within the IC fab, as well as serving as a lithography process tool monitor. The Surfscan SP3 can also be used for incoming wafer qualification, inline process control, final wafer qualification, process tool qualification, and as a process uniformity monitor.

KLA

SURFSCAN SP3

Defect Inspection
